The Story

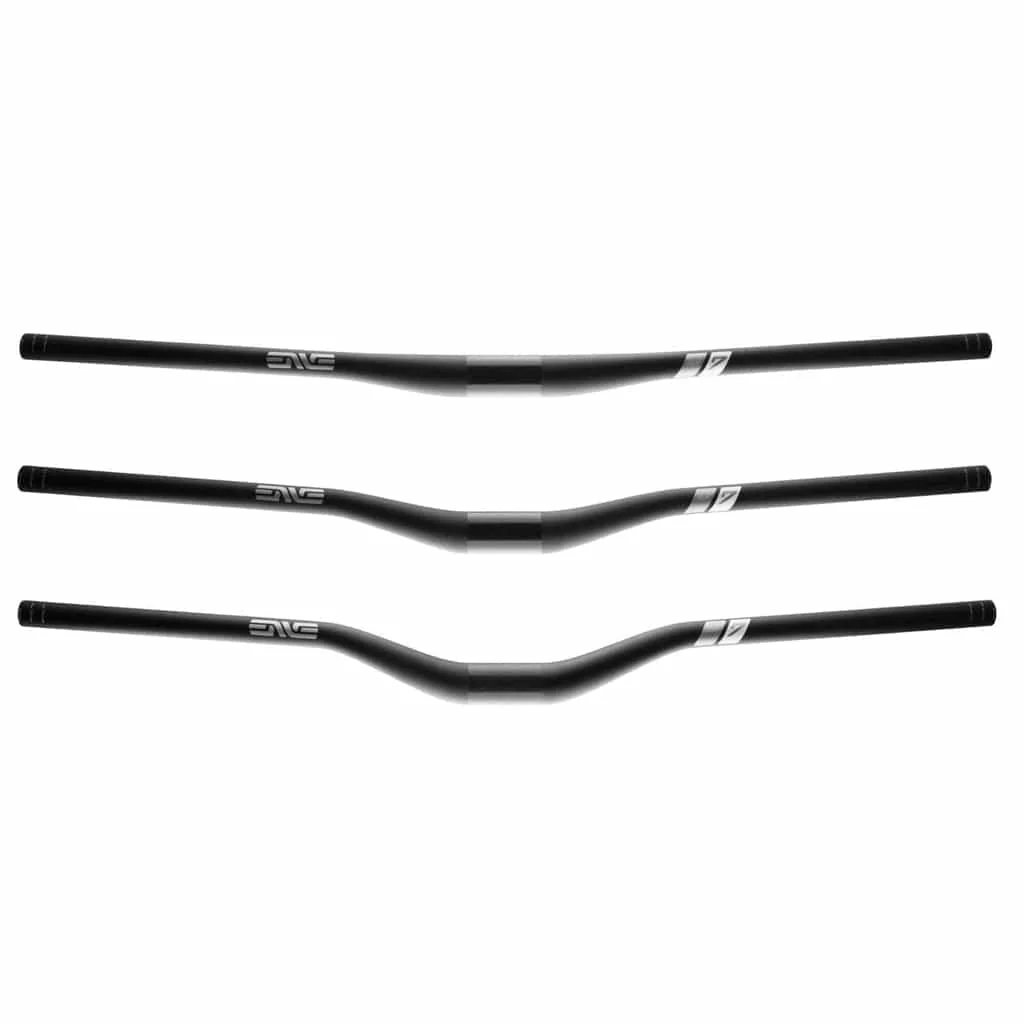

An exceptionally strong carbon fiber 35mm clamp riser bar, that's built to descend. It is available in 10, 25 and 40mm rise options.
The M7 bar is ENVE's 35mm bar for the most aggressive and demanding riders. Carbon fiber is the ideal material for a gravity bar because fiber orientation and bar shape can be controlled independently and developed in unison, resulting in a tuned flex profile that cannot be achieved with aluminum. This bar is tuned to be precise and responsive, while absorbing fatigue-inducing chatter and taking the sting out of the biggest hits. Available in a 10mm, 25mm, or 40mm rise, the M7 bar features a trail-perfect 8" sweep and 4" tip for your long-travel 29er, enduro race bike, or downhill machine.
Specifications
| SHAPE | LOW-RISE |
|---|---|
| Material | Carbon |
| Weight | 230g |
| Bar Width (Max) | 800mm |
| Bar Width (Min) | 780mm |
| Clamp Diameter | 35mm |
| Rise | 10mm |
| Sweep | 8 Degrees |
| Tip | 4 Degrees |
| Torque Spec: Face Plate | 5.5Nm |
| Torque Spec: Controls | 5.5Nm |
| SHAPE | MID-RISE |
|---|---|
| Material | Carbon |
| Weight | 240g |
| Bar Width (Max) | 800mm |
| Bar Width (Min) | 780mm |
| Clamp Diameter | 35mm |
| Rise | 25mm |
| Sweep | 8 Degrees |
| Tip | 4 Degrees |
| Torque Spec: Face Plate | 5.5Nm |
| Torque Spec: Controls | 5.5Nm |
| SHAPE | HIGH-RISE |
|---|---|
| Material | Carbon |
| Weight | 245g |
| Bar Width (Max) | 800mm |
| Bar Width (Min) | 780mm |
| Clamp Diameter | 35mm |
| Rise | 40mm |
| Sweep | 8 Degrees |
| Tip | 4 Degrees |
| Torque Spec: Face Plate | 5.5Nm |
| Torque Spec: Controls | 5.5Nm |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
An exceptionally strong carbon fiber 35mm clamp riser bar, that's built to descend. It is available in 10, 25 and 40mm rise options.
The M7 bar is ENVE's 35mm bar for the most aggressive and demanding riders. Carbon fiber is the ideal material for a gravity bar because fiber orientation and bar shape can be controlled independently and developed in unison, resulting in a tuned flex profile that cannot be achieved with aluminum. This bar is tuned to be precise and responsive, while absorbing fatigue-inducing chatter and taking the sting out of the biggest hits. Available in a 10mm, 25mm, or 40mm rise, the M7 bar features a trail-perfect 8" sweep and 4" tip for your long-travel 29er, enduro race bike, or downhill machine.
Specifications
| SHAPE | LOW-RISE |
|---|---|
| Material | Carbon |
| Weight | 230g |
| Bar Width (Max) | 800mm |
| Bar Width (Min) | 780mm |
| Clamp Diameter | 35mm |
| Rise | 10mm |
| Sweep | 8 Degrees |
| Tip | 4 Degrees |
| Torque Spec: Face Plate | 5.5Nm |
| Torque Spec: Controls | 5.5Nm |
| SHAPE | MID-RISE |
|---|---|
| Material | Carbon |
| Weight | 240g |
| Bar Width (Max) | 800mm |
| Bar Width (Min) | 780mm |
| Clamp Diameter | 35mm |
| Rise | 25mm |
| Sweep | 8 Degrees |
| Tip | 4 Degrees |
| Torque Spec: Face Plate | 5.5Nm |
| Torque Spec: Controls | 5.5Nm |
| SHAPE | HIGH-RISE |
|---|---|
| Material | Carbon |
| Weight | 245g |
| Bar Width (Max) | 800mm |
| Bar Width (Min) | 780mm |
| Clamp Diameter | 35mm |
| Rise | 40mm |
| Sweep | 8 Degrees |
| Tip | 4 Degrees |
| Torque Spec: Face Plate | 5.5Nm |
| Torque Spec: Controls | 5.5Nm |
